What it is, who it's for, what it does
About this product

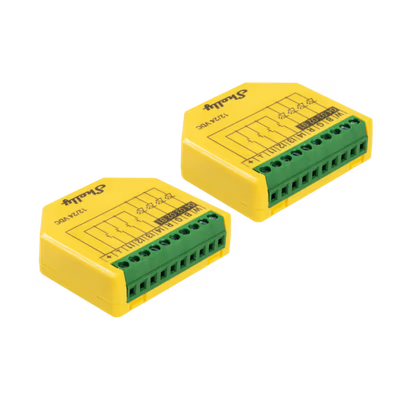

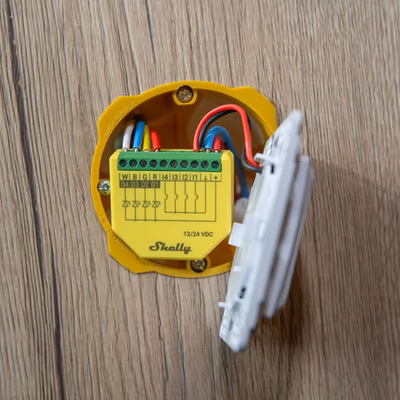

Shelly Plus RGBW PM is an in-wall controller for 12 V and 24 V analog LED strips, operated over 2.4 GHz Wi-Fi and Bluetooth. The four output channels can be configured as RGBW, RGB or four independent lights, so you can drive a single colour strip or several single-colour lighting groups from one device.<br><br>Maximum switching current is 4 A per channel and 10 A in total at up to 24 V DC. The power metering function tracks voltage, current and consumption in real time, with a 0-24 V voltmeter and a 0-10 A ammeter. The device supports scripting, MQTT, 20 schedules and 20 webhooks for scenario integration.<br><br>A compact 42x37x12 mm body weighing 17 g fits behind a switch or inside the strip aluminium profile. It operates from -20 to 40 degrees Celsius and carries CE, UKCA and RoHS marks.
- DeliveryFree from 1500 MDL
- Returns30 days to return
- Warranty24 months
15+projects delivered300+devices installed3 yearslocal-first experienceChișinăushowroom Columna 153Book a showroom visit →
CasaSmart essentials
What it works with, what it needs, what you can do
Install & requirements
What you need on your side and what we deliver.
- Zigbee hub or Matter gateway for wireless variants
- 65 mm back-box or DIN panel for wired variants
- Local setup on Home Assistant — included in install
Smart scenarios
Three typical automations we set up after the install.
- 01Morning: warm light + blinds up + climate at 22 °C
- 02Leaving: lights off, arm sensors, close the gas
- 03Evening: warm ambient + cinema scene
Where it works
Use cases
In the evening the strip switches to warm white 30% when the relax scene runs.
Control of an RGBW strip in a drywall niche with colour and warm-white scenes.
A physical button on I1 turns on only the under-cabinet task strip.
The Lights x4 profile drives the under-cabinet strip and the ceiling outline separately.
The app flags higher-than-expected draw on the red channel.
The PM function shows the strip real power for sizing the power supply.
Analytics
See consumption — save on bills
Real-time consumption tracking via the eWeLink app. Daily, weekly and monthly history helps identify the most energy-hungry devices.
For the installerTechnical specificationsfull spec · wiring · datasheet
For the installer
Technical specifications
full spec · wiring · datasheet
Power
- Alimentare / Power supply
- 12/24 V DC
- Canale iesire / Output channels
- 4 (RGBW / RGB / Lights x4)
- Curent comanda max pe canal / Max current per channel
- 4 A
- Curent comanda max total / Max total current
- 10 A
- Consum propriu / Power consumption
- < 1.2 W
- Voltmetru / Voltmeter
- 0-24 (+/-5%) V
- Ampermetru / Ammeter
- 0-10 (+/-10%) A
Wireless
- Wi-Fi
- 802.11 b/g/n 2.4 GHz
- Bluetooth
- 4.2
Connectivity
- Intrari / Inputs
- 4 (I1-I4)
Physical
- Dimensiuni / Dimensions
- 42x37x12 mm
- Greutate / Weight
- 17 g
Environment
- Temperatura functionare / Operating temperature
- -20...40 °C
Other
- Certificari / Certifications
- CE, UKCA, RoHS
Support
Frequently asked questions
Which LED strip types does the Shelly Plus RGBW PM support?
It supports 12 V and 24 V analog LED strips: single-colour, RGB and RGBW. It is not compatible with addressable digital strips such as WS2812.What is the maximum current per channel?
The maximum switching current is 4 A per channel and 10 A in total, at up to 24 V DC.What does PM mean in the product name?
PM stands for power metering: the device measures voltage (0-24 V) and current (0-10 A) in real time, showing the strip real consumption in the Shelly app.Does it need a separate power supply?
Yes. The controller is not a power supply; it requires a 12 V or 24 V DC supply rated for the total power of the connected strip.Which smart-home ecosystems is it compatible with?
It works with Home Assistant, Google Home and Amazon Alexa, plus MQTT and scripting for advanced integrations. It connects over 2.4 GHz Wi-Fi or Bluetooth.Do you offer warranty and delivery in Moldova?
Yes. CasaSmart is the official Shelly importer in Moldova, with a 24-month warranty and delivery across Chisinau and the whole country.
