Can Shelly 2PM Gen3 control blinds and roller shutters?

Yes. In cover mode the two relays work as a pair to raise and lower the motor and remember the position, plus slat tilt on Venetian blinds; it includes obstacle detection and a safety switch.

What load does each channel handle?

Each channel switches up to 10 A, while the module's total current must not exceed 16 A (18 A peak) at 110-240 V~; low-voltage supply is 24 V DC.

Does the 2PM Gen3 measure energy consumption?

Yes. It has an AC voltmeter and ammeter and reports voltage, current and power on each of the two channels, so you see each circuit's draw separately.

Does it support Matter and Apple Home?

Yes, after a firmware update the module becomes Matter compatible over Wi-Fi, which also enables Apple Home control alongside Home Assistant, Google Home and Alexa.

Do I need neutral at the switch to install it?

Neutral at the switch is not required, but both live and neutral must reach the module inside the box. The 42x37x16 mm module fits a standard 60 mm wall box.

Does it work on any Wi-Fi network?

It works on 2.4 GHz Wi-Fi (802.11 b/g/n); on dual-band routers keep a 2.4 GHz SSID active for pairing. Bluetooth 4.2 assists with setup.

Shelly 2PM Gen3 2-channel relay

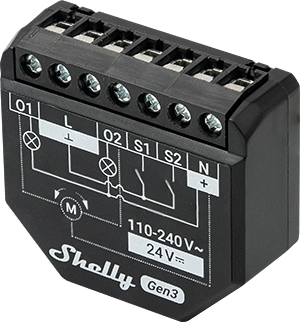

Name: Shelly 2PM Gen3 - 2-channel relay with power metering and cover mode
Brand: Shelly
SKU: SHELLY-2PM-GEN3

casasmart.md

Compatibility

Works with these ecosystems

Protocols

Wi-Fi
BLE
Matter

Ecosystems

Home Assistant
Google Home
Amazon Alexa
Apple Home

What it is, who it's for, what it does

About this product

Shelly 2PM Gen3 leads a double life inside one wall-box housing. Set to cover mode, its two relays work as a pair to raise and lower blinds, roller shutters, awnings, gates or any bi-directional motor, remembering position and slat tilt on Venetian blinds; obstacle detection and a safety switch stop the motor when it jams. Set to two-channel mode, each output becomes an independent relay for a lighting circuit or a socket, with voltage, current and power measured separately on each channel. It handles 10 A per channel and up to 16 A total at 110-240 V~, and also runs on 24 V DC for low-voltage jobs. Connectivity is Wi-Fi 2.4 GHz plus Bluetooth, and after a firmware update the module becomes Matter compatible. Two inputs, S1 and S2, accept existing switches or push-buttons, so the familiar manual control stays intact for residents.

Delivery
Free from 1500 MDL
Returns
30 days to return
Warranty
24 months

15+projects delivered300+devices installed3 yearslocal-first experienceChișinăushowroom Columna 153Book a showroom visit →

CasaSmart essentials

What it works with, what it needs, what you can do

Verified compatibility

We test every device for these ecosystems. For non-standard integrations contact us before ordering.

Home Assistant
Zigbee
Matter
KNX
Wi-Fi

Install & requirements

What you need on your side and what we deliver.

Zigbee hub or Matter gateway for wireless variants
65 mm back-box or DIN panel for wired variants
Local setup on Home Assistant — included in install

Request install quote

Smart scenarios

Three typical automations we set up after the install.

01Morning: warm light + blinds up + climate at 22 °C
02Leaving: lights off, arm sensors, close the gas
03Evening: warm ambient + cinema scene

Where it works

Use cases

At noon the blinds drop to 60% and tilt the slats to cut heat on the terrace.

In cover mode, 2PM Gen3 raises and lowers Venetian blinds and remembers position and slat tilt.

Hallway and bathroom sit on separate channels, and the app shows the wattage each one draws.

In two-channel mode, each output separately drives a lighting line and reports its consumption.

Residents use the same switch, but the light can now also be controlled from a phone.

Inputs S1 and S2 accept your current wall switches without changing the look.

Analytics

See consumption — save on bills

Real-time consumption tracking via the eWeLink app. Daily, weekly and monthly history helps identify the most energy-hungry devices.

For the installer

Technical specifications

full spec · wiring · datasheet

Power

Channels: 2
Max current per channel (AC): 10 A
Max current total (AC): 16 A
Max peak current total: 18 A
Max switching voltage (AC): 240 V
Power supply: 110-240 V~ / 24 V= +/-10%
Standby consumption: < 1.4 W
Power metering: AC voltmeter + ammeter per channel

Wireless

Wi-Fi: 802.11 b/g/n 2.4 GHz
Bluetooth: 4.2
Matter: Compatible after firmware update

Connectivity

Inputs: 2 switch/button (S1, S2)

Other

Cover mode: Position + tilt, obstacle detection, safety switch

Physical

Dimensions (H x W x D): 37 x 42 x 16 mm
Weight: 30 g

Environment

Operating temperature: -20 to 40 C
Operating humidity: 30 to 70 % RH

Full device datasheet

Support

Frequently asked questions

Can Shelly 2PM Gen3 control blinds and roller shutters?
Yes. In cover mode the two relays work as a pair to raise and lower the motor and remember the position, plus slat tilt on Venetian blinds; it includes obstacle detection and a safety switch.
What load does each channel handle?
Each channel switches up to 10 A, while the module's total current must not exceed 16 A (18 A peak) at 110-240 V~; low-voltage supply is 24 V DC.
Does the 2PM Gen3 measure energy consumption?
Yes. It has an AC voltmeter and ammeter and reports voltage, current and power on each of the two channels, so you see each circuit's draw separately.
Does it support Matter and Apple Home?
Yes, after a firmware update the module becomes Matter compatible over Wi-Fi, which also enables Apple Home control alongside Home Assistant, Google Home and Alexa.
Do I need neutral at the switch to install it?
Neutral at the switch is not required, but both live and neutral must reach the module inside the box. The 42x37x16 mm module fits a standard 60 mm wall box.
Does it work on any Wi-Fi network?
It works on 2.4 GHz Wi-Fi (802.11 b/g/n); on dual-band routers keep a 2.4 GHz SSID active for pairing. Bluetooth 4.2 assists with setup.
