Does the Shelly Wave Pro 1 need a gateway?

Yes. The Wave Pro 1 does not run standalone over Wi-Fi; control and automation require a compatible Z-Wave gateway (hub), such as Home Assistant with a Z-Wave stick or SmartThings.

What maximum load does it support?

The dry contact is rated up to 16 A at 240 V AC. For inductive loads use an RC snubber in parallel with the load.

Which Z-Wave frequency does the EU version use?

The European version operates at 868.4 MHz, the band used officially in Moldova and across the CEPT region.

How much space does it take in the breaker box?

The housing measures 94 x 19 x 69 mm, so it occupies a single module width (about 18 mm) on the DIN rail.

Can it switch a circuit at a different voltage from its supply?

Yes. As a potential- dry contact it can switch a separate circuit, useful for gates or automation, within the 16 A / 240 V AC rating.

Who should install the device and what warranty applies?

Installation in the breaker box must be done by a qualified electrician, since it operates at mains voltage. CasaSmart provides a 24-month warranty in Moldova.

Shelly Wave Pro 1 Z-Wave DIN relay 16 A

Name: Shelly Wave Pro 1 - Z-Wave DIN-rail 1-channel relay 16 A
Brand: Shelly
SKU: SHELLY-WAVE-PRO-1

casasmart.md

Shelly Wave Pro 1 - releu Z-Wave 1 canal pe sina DIN 16 A - main

Compatibility

Works with these ecosystems

Ecosystems

Home Assistant
Samsung SmartThings

What it is, who it's for, what it does

About this product

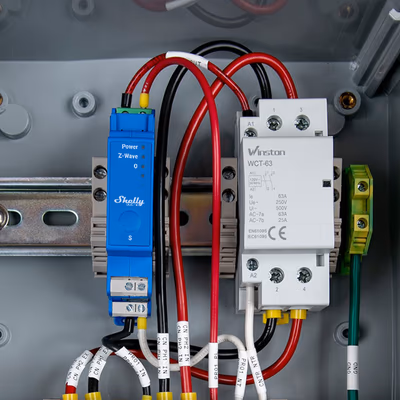

The Shelly Wave Pro 1 is a one-module-wide (18 mm) Z-Wave smart relay that mounts on the DIN rail inside the breaker box.<br><br>It switches a single circuit through a potential- dry contact rated up to 16 A at 240 V AC, suiting lighting, sockets and appliances with inductive start-up. The Z-Wave 800 series chip provides Security S2 and QR-code SmartStart, and the device acts as a Z-Wave repeater in the mesh.<br><br>A compatible Z-Wave gateway is required for control and configuration. Standby consumption stays below 0.3 W and overheat protection is always active.

Delivery
Free from 1500 MDL
Returns
30 days to return
Warranty
24 months

15+projects delivered300+devices installed3 yearslocal-first experienceChișinăushowroom Columna 153Book a showroom visit →

CasaSmart essentials

What it works with, what it needs, what you can do

Verified compatibility

We test every device for these ecosystems. For non-standard integrations contact us before ordering.

Home Assistant
Zigbee
Matter
KNX
Wi-Fi

Install & requirements

What you need on your side and what we deliver.

Zigbee hub or Matter gateway for wireless variants
65 mm back-box or DIN panel for wired variants
Local setup on Home Assistant — included in install

Request install quote

Smart scenarios

Three typical automations we set up after the install.

01Morning: warm light + blinds up + climate at 22 °C
02Leaving: lights off, arm sensors, close the gas
03Evening: warm ambient + cinema scene

Where it works

Use cases

Staircase light turns on in the evening and off in the morning via the Z-Wave hub

Switches the common lighting circuit by schedule and sensors

The boiler pump runs only within a set interval to save energy

Turns the pump on and off by scenes

The water heater runs at night on a reduced tariff via the Wave Pro 1

Controls the heater through a 16 A dry contact

Analytics

See consumption — save on bills

Real-time consumption tracking via the eWeLink app. Daily, weekly and monthly history helps identify the most energy-hungry devices.

For the installer

Technical specifications

full spec · wiring · datasheet

Other

Protocol: Z-Wave 800 series
Frecventa Z-Wave: 868.4 MHz
Canale: 1
Tip contact: Contact uscat (potential-)
Curent maxim de comutare AC: 16 A
Tensiune maxima de comutare AC: 240 V
Alimentare: 110-240 V AC, 50/60 Hz
Consum: < 0.3 W
Putere radio max.: < 25 mW
Securitate: Security S2 + SmartStart
Dimensiuni (I x L x A): 94 x 19 x 69 mm
Latime modul DIN: 1 (18 mm)
Greutate: 60 g
Temperatura ambient: -20...40 C
Umiditate: 30-70 % RH
Raza interior: pana la 40 m
Repetor Z-Wave: Da
Gateway necesar: Da (hub Z-Wave)

Full device datasheet

Support

Frequently asked questions

Does the Shelly Wave Pro 1 need a gateway?
Yes. The Wave Pro 1 does not run standalone over Wi-Fi; control and automation require a compatible Z-Wave gateway (hub), such as Home Assistant with a Z-Wave stick or SmartThings.
What maximum load does it support?
The dry contact is rated up to 16 A at 240 V AC. For inductive loads use an RC snubber in parallel with the load.
Which Z-Wave frequency does the EU version use?
The European version operates at 868.4 MHz, the band used officially in Moldova and across the CEPT region.
How much space does it take in the breaker box?
The housing measures 94 x 19 x 69 mm, so it occupies a single module width (about 18 mm) on the DIN rail.
Can it switch a circuit at a different voltage from its supply?
Yes. As a potential- dry contact it can switch a separate circuit, useful for gates or automation, within the 16 A / 240 V AC rating.
Who should install the device and what warranty applies?
Installation in the breaker box must be done by a qualified electrician, since it operates at mains voltage. CasaSmart provides a 24-month warranty in Moldova.
