What it is, who it's for, what it does
About this product

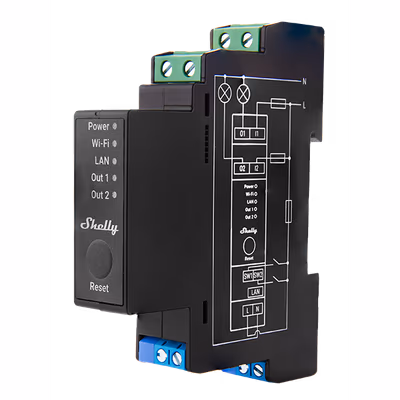

The Shelly Pro 2PM is a two-channel relay in a DIN-rail housing two modules wide, designed for installation in the distribution board. Each of the two channels switches up to 16 A, while total device load reaches 25 A at a 110–240 V AC supply, covering socket groups, lighting and small motors in a Chisinau apartment or office.<br><br>The defining trait of the Pro line is electrical metering: the device meters each channel separately through its built-in AC voltmeter and ammeter, while an internal temperature sensor watches for overheating. For an integrator this means per-channel monitoring straight from the panel, with no separate meters required.<br><br>For connectivity, the Pro 2PM combines three paths: Wi-Fi 802.11 b/g/n, wired Ethernet via an RJ45 connector and Bluetooth 4.2. The wired port gives a stable link inside a metal enclosure where Wi-Fi is attenuated. MQTT, scripting, schedules and webhooks are supported. Overheating, overvoltage, overcurrent and overpower protections are built into the device.
- DeliveryFree from 1500 MDL
- Returns30 days to return
- Warranty24 months
15+projects delivered300+devices installed3 yearslocal-first experienceChișinăushowroom Columna 153Book a showroom visit →
CasaSmart essentials
What it works with, what it needs, what you can do
Install & requirements
What you need on your side and what we deliver.
- Zigbee hub or Matter gateway for wireless variants
- 65 mm back-box or DIN panel for wired variants
- Local setup on Home Assistant — included in install
Smart scenarios
Three typical automations we set up after the install.
- 01Morning: warm light + blinds up + climate at 22 °C
- 02Leaving: lights off, arm sensors, close the gas
- 03Evening: warm ambient + cinema scene
Where it works
Use cases
In a Chisinau apartment the two channels turn on living-room and kitchen lighting, with consumption shown separately per room.
A single Pro 2PM switches two independent lighting circuits with power metering on each.
In a private house a schedule turns the heater on at night, while consumption is tracked straight from the panel.
Channel 1 controls the water heater, channel 2 the pump; per-channel metering shows the real energy use of heating.
In an office panel the device is connected by patch cable to a switch, with no dependence on Wi-Fi quality.
Ethernet RJ45 gives a stable link where Wi-Fi is shielded by the metal enclosure of the panel.
Analytics
See consumption — save on bills
Real-time consumption tracking via the eWeLink app. Daily, weekly and monthly history helps identify the most energy-hungry devices.
For the installerTechnical specificationsfull spec · wiring · datasheet
For the installer
Technical specifications
full spec · wiring · datasheet
Power
- Channels
- 2
- Max current per channel
- 16 A
- Max total current
- 25 A
- Supply voltage AC
- 110-240 V
- Power consumption
- <3 W
- Power metering
- per channel (AC voltmeter + ammeter)
Wireless
- Wi-Fi
- 802.11 b/g/n 2.4 GHz
- Bluetooth
- 4.2
Connectivity
- Ethernet
- RJ45 LAN
Other
- CPU
- ESP32-D0WDQ6
- Flash memory
- 8 MB
Physical
- Dimensions
- 94x19x69 mm
- DIN width
- 2 modules
Environment
- Operating temperature
- -20 to 40 °C
- Humidity
- 30-70 % RH
- Max altitude
- 2000 m
Support
Frequently asked questions
How many channels does the Shelly Pro 2PM have and what load does it handle?
It has 2 independent channels, each switching up to 16 A, with a total device load of up to 25 A on a single-phase 110–240 V AC supply.How many DIN modules does it occupy on the rail?
The housing measures 94×19×69 mm and takes up two standard modules on the DIN rail in the distribution board.Does the Shelly Pro 2PM have wired Ethernet?
Yes, the device has an RJ45 LAN connector in addition to Wi-Fi 802.11 b/g/n and Bluetooth 4.2, useful for a stable link inside a metal panel.Does it measure energy consumption per channel?
Yes, the device has a built-in AC voltmeter and ammeter and meters each of the two channels separately.Does the Pro 2PM work without the cloud?
Yes, it supports MQTT, local scripts, up to 20 schedules and webhooks, so it can be integrated into a local automation system without the internet.Who should install the Shelly Pro 2PM?
As a distribution-board device powered at 110–240 V AC, installation must be done by a licensed electrician, with the breaker and cable cross-section matched to the site.
