Sonoff · D1-1

Sonoff D1-1 lever wire splicing connectors 32A, set of 34

Name: Sonoff D1-1 lever wire splicing connectors 32A, set of 34
Brand: Sonoff
SKU: SONOFF-D1-1
Price: 399 MDL
Availability: InStock

399 MDLIn stock

Terminals & DIN mounts

Manufacturer images

399 MDLIn stock

Help finding the right fit

Check compatibility

Solid wire size, mm²: 0.5–4
Rated current: 32 A

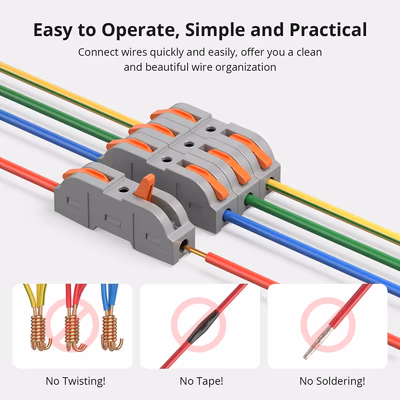

An installation kit of 34 identical 1-in/1-out lever connectors that clip together into groups for as many lines as you need — for tidy wire joins inside a junction box with no screws, soldering or insulating tape.

19 specifications from manufacturer documents

We deliver across Moldova. Availability, delivery timing and cost are confirmed with a manager before order fulfilment.

The right choice starts with specifications

Device passport

SKU: SONOFF-D1-1 · Document model: D1-1

Specifications checked against the linked manufacturer documents.Checked 18 October 2026

Model and version3

Product type — what it means Splicing connectors join wires in a junction or wall box instead of twisting them. DIN-rail terminals sit in the panel next to the breakers and build up a terminal strip. A DIN adapter lets you fix a module without its own clip onto the rail.	Splicing connectors [1]
Barcode (EAN)	6920075740974 [1]
Standard	IEC 60947-7-1:2009 [3]

Housing and installation11

Solid wire size, mm² — what it means Which sizes of single-core (solid) copper wire the connector accepts, in mm². Home wiring typically uses 1.5 mm² for lighting and 2.5 mm² for sockets.	0.5–420–12 AWG [1]
Flexible wire size, mm² — what it means Which sizes of stranded (flexible) wire the connector accepts, in mm². Flexible wire usually comes from lights and appliances; a ferrule is needed only if the manual says so.	0.5–2.520–14 AWG [1]
Mounting — what it means How and where it is installed: in a wall box, on a wall or ceiling, on a DIN rail, on a table or in a socket.	Inside a junction boxLoose in a junction box, light fitting or electrical box; no fixing holes or DIN clip [1]
Wire strip length — what it means How many millimetres of insulation are stripped from the wire end before it goes into the connector. Too short a strip worsens the contact; too long leaves bare conductor outside the housing.	9 mm [4]
Contact material — what it means The metal of the connector’s current-carrying part. Copper conducts well and tin plating protects it from oxidation; brass is stronger but conducts less well than copper.	CopperRed copper [1]
Connector housing material — what it means The plastic of the insulating housing. Polycarbonate (PC) is often clear so you can see whether the wire is fully inserted; polyamide (PA, nylon) is a common material for terminal blocks.	Polycarbonate (PC) [1]
Plastic flammability class — what it means The housing plastic’s flammability class under the UL 94 standard. V-0 is the strictest of the common classes: the sample self-extinguishes within 10 seconds and drops no burning particles. It matters for products with 230 V inside or next to them.	Not stated by the manufacturer

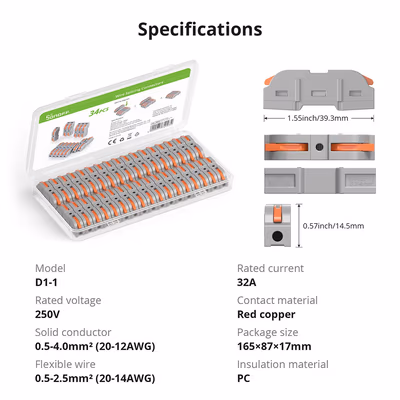

Dimensions — what it means The device’s size in millimetres as the maker states it. Check that it fits the wall box, niche or shelf.	Module: 9.1 × 39.3 × 14.5 mm (width × length × height); kit case: 165 × 87 × 17 mm9.1 mm width from the case label (“Size: 9.1x39.3x14.5mm”) [3]
Weight — what it means The device’s weight without packaging, per the maker.	182 g [1]

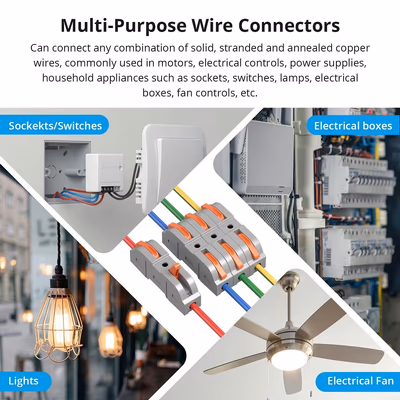

Wire types	Copper wire: solid, stranded and flexible, in any combination [1]
Certifications — what it means Standards and certifications the maker lists for this model (for example CE, RoHS, Zigbee 3.0, Matter).	CECE mark on the kit case label in the official infographic [3]

Power2

Rated current — what it means The highest continuous current through the connector per its documentation. It must be at least the rating of the breaker protecting the circuit; the wire size also limits the current actually allowed.	32 A [1]
Rated voltage — what it means The highest working voltage the connector insulation is rated for. Household 230 V mains needs a rating of at least 250 V.	250 V [1]

Control and features2

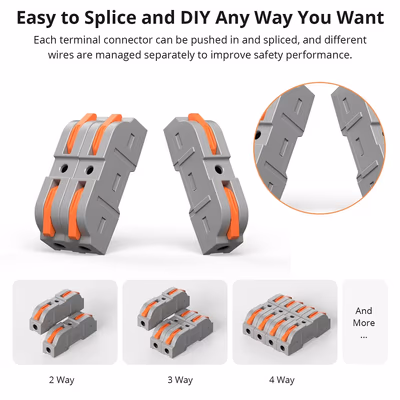

Wires per connector — what it means How many wires one connector joins. To branch one wire to several lights or sockets you need a connector with that many entries; sets can contain several kinds.	2 wiresEach module joins 2 wires (in–out, two levers). Modules clip together into groups of 2, 3, 4 or more lines; each line stays separate [2]
Wire clamping — what it means A lever connector opens and closes with a lever: the wire can be removed and reinserted without tools. A push-in connector grips a solid wire as it is inserted. A screw terminal is tightened with a screwdriver and re-tightened over time.	LeverRaise the lever to 90°, insert the wire and close it; the wire can be removed and replaced [1]

Package contents2

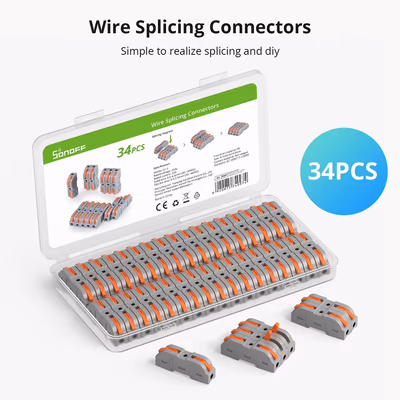

Pieces per set — what it means How many connectors or items come in one pack. To compare the price per piece, divide the cost by this number; which kinds of connectors make up the set is in the note.	3434 identical modules in a case [3]

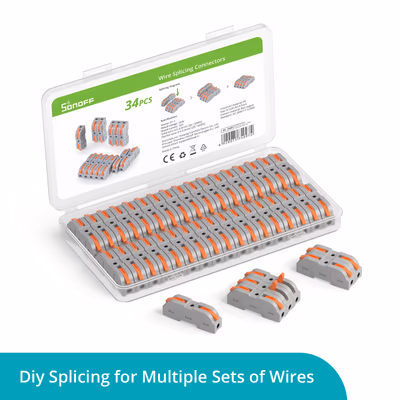

Package contents — what it means What comes in the box, per the maker.	34 lever splicing connectors (1-in/1-out modules that clip together), plastic storage case [3]
