Verified compatibility
We test every device for these ecosystems. For non-standard integrations contact us before ordering.
- Home Assistant
- Zigbee
- Matter
- KNX
- Wi-Fi
Compatibility
Works with these ecosystems
Protocols
- Wi-Fi
- BLE
- Zigbee
- Matter
Ecosystems
- Home Assistant
- Google Home
- Amazon Alexa
- Samsung SmartThings
- Apple Home
What it is, who it's for, what it does
About this product
The Shelly 2PM Gen4 is a flush-mount module that switches two independent 230V circuits and measures power, voltage and current on each channel in real time.<br><br>Compared with the previous generation, Gen4 keeps 2.4GHz Wi-Fi and Bluetooth but adds an 802.15.4 Zigbee radio and Matter support, so the same relay can join several ecosystems without extra hardware.<br><br>The two inputs S1 and S2 accept classic switches or momentary buttons, while the dedicated cover mode drives blinds, roller shutters and awnings from a single device. The ESP-Shelly-C68F processor and 8MB of memory enable local scripting, scenes and MQTT for advanced automation in a Chisinau home.
- DeliveryFree from 1500 MDL
- Returns30 days to return
- Warranty24 months
15+projects delivered300+devices installed3 yearslocal-first experienceChișinăushowroom Columna 153Book a showroom visit →
CasaSmart essentials
What it works with, what it needs, what you can do
Install & requirements
What you need on your side and what we deliver.
- Zigbee hub or Matter gateway for wireless variants
- 65 mm back-box or DIN panel for wired variants
- Local setup on Home Assistant — included in install
Smart scenarios
Three typical automations we set up after the install.
- 01Morning: warm light + blinds up + climate at 22 °C
- 02Leaving: lights off, arm sensors, close the gas
- 03Evening: warm ambient + cinema scene
Where it works
Use cases
In the living room you switch the ceiling light and LED strip separately while keeping the classic wall switch.
Independent control of two lighting circuits from a single module mounted behind the switch.
The roller shutter on a Chisinau apartment balcony closes automatically each evening on a schedule.
Cover mode for up/down travel with position calibration and control from the app or by voice.
The heater runs during the off-peak tariff and reports daily consumption in the app.
Real per-channel power metering shows what a water heater or pump draws and enables time schedules.
Analytics
See consumption — save on bills
Real-time consumption tracking via the eWeLink app. Daily, weekly and monthly history helps identify the most energy-hungry devices.
For the installerTechnical specificationsfull spec · wiring · datasheet
For the installer
Technical specifications
full spec · wiring · datasheet
Power
- Max curent per canal
- 10 A
- Curent total
- 16 A
- Tensiune alimentare
- 110-240 V~ / 24 VDC
- Iesiri releu
- 2 cu masurare consum
Connectivity
- Intrari comanda
- 2 (S1, S2)
Wireless
- Wi-Fi
- 802.11 b/g/n/ax 2.4GHz
- Bluetooth
- 5.0
- Zigbee
- 802.15.4
- Matter
- Da (profil Switch)
Physical

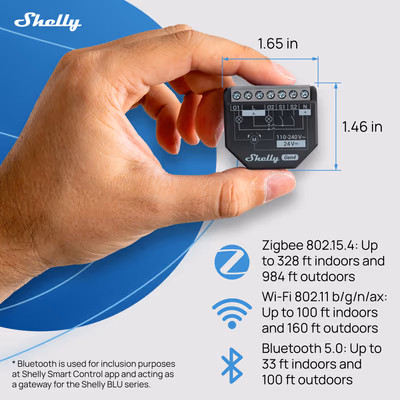

- Dimensiuni
- 42x37x16 mm
- Greutate
- 30 g
Environment
- Temperatura de lucru
- -20...40 C
Other
- Procesor
- ESP-Shelly-C68F, 8MB
Support
Frequently asked questions
What is new in the Shelly 2PM Gen4 compared with the Gen3?
Besides 2.4GHz Wi-Fi and Bluetooth, the Gen4 adds an 802.15.4 Zigbee radio and Matter support plus a stronger processor with 8MB of memory, so the same relay joins multiple ecosystems with no extra hardware.What load does each channel support?
Each of the two channels switches up to 10A, with 16A total across both outputs and an 18A peak, at 110-240V~ or 24VDC, with consumption metering on each output.Does it need a neutral wire for installation?
Yes, the module strictly requires a neutral (N) on its dedicated terminal in addition to line (L); without a neutral it cannot be powered correctly inside the back-box.Can it control blinds and roller shutters?
Yes, a dedicated cover mode uses the two channels as an up/down pair for blinds, roller shutters, awnings or venetian blinds with position calibration.Does it work with Matter and which ecosystems are supported?
The device is Matter-compatible (default Switch profile) over Wi-Fi and works with Amazon Alexa, Google Home, Samsung SmartThings, Apple Home and Home Assistant.Which Wi-Fi band does it connect to?
The module uses 802.11 b/g/n/ax Wi-Fi exclusively on the 2.4GHz band, so the router must have its 2.4GHz network active during setup.
