Sonoff · ZBM5-1C-86W
Via a Zigbee coordinator or hub · SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro, iHost, ZBBridge (basic functions), ZBDongle-E/P (ZHA, Zigbee2MQTT)
Check hub compatibility.
Manufacturer image shared by the series. Check the colour, number of keys and variant in the model name and specifications.
A Zigbee gateway is needed: the maker recommends SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro or iHost; ZBDongle-P/E also work. Philips and Fritzbox gateways are not supported. The gateway is not included.
Suitable gateways and hubsAdd one more repeater to your Zigbee mesh: wired with neutral, the ZBM5 relays the network and answers a local Home Assistant — no cloud, no account.
36 specifications from manufacturer documentsWe deliver across Moldova. Availability, delivery timing and cost are confirmed with a manager before order fulfilment.
The right choice starts with specifications
SKU: SONOFF-ZBM5-1C-86W · Document model: ZBM5-1C-86W
Specifications checked against the linked manufacturer documents. Load limits, package details and measurement conditions are retained.Checked 18 October 2026
Keys (channels) — what it meansHow many separate load circuits the switch controls independently — usually the number of keys (1, 2 or 3 groups of lights). Scene-only keys without their own relay are not counted. | 11C version: one key, output L out1 [1] |
|---|---|
Panel control type — what it meansHow you operate it by hand: pressing a key with travel and a click, touching glass with no travel, swiping, turning a knob, or using a screen with menus. | Mechanical keyssingle press — on/off; hold 5 s — pairing mode [3] |

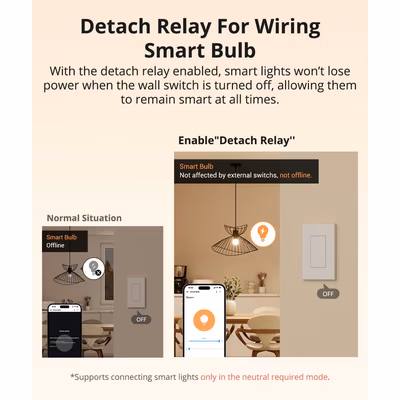

Detached key mode (scene button) — what it meansThe switch wired to the module can be decoupled from the relay: the load stays powered and a press runs a scene. Needed when the circuit has smart bulbs. | Yes“Detach Relay”: the circuit stays powered and the key runs a scene. Neutral mode only. Works with ZBBridge-P/U, NSPanel Pro, iHost and in Zigbee2MQTT; not with the original ZBBridge or in ZHA [1] |
Backlight and indicators — what it meansHow the panel lights up: just an on/off indicator, a soft backlight to find the keys in the dark, an indicator of the current brightness level, or decorative lighting. Adjusting or switching off the backlight is in the note if the maker describes it. | Status indicatorA blue LED under the key shows pairing, network faults and wiring-mode changes; turning it off is possible with some gateways. A night backlight is not described [3] |

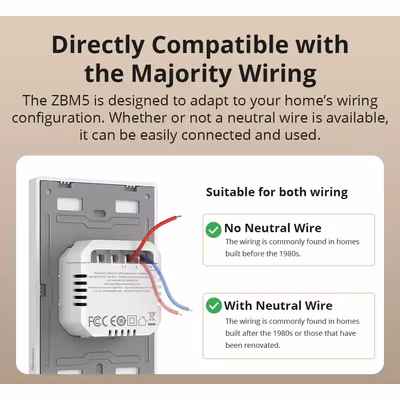

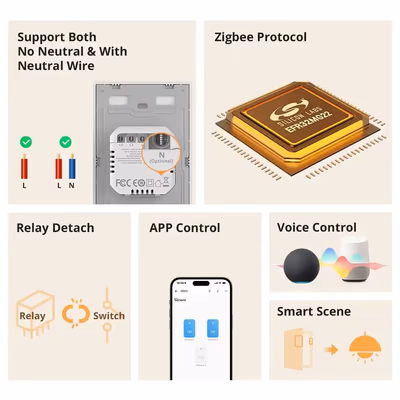

Neutral wire (N) — what it meansWhether the wall box needs a neutral wire. Older wiring often brings only the live wire to the switch; then pick a model that works without N. | Works with or without NTwo wiring diagrams: with and without neutral (terminal “N (Optional)”). The mode is detected automatically at first power-up. Without neutral: 3 W minimum load, no smart bulbs or inductive loads (fans), and the switch is a Zigbee end device. With neutral: no minimum load, and it acts as a Zigbee router [1] |
|---|---|
Front panel material — what it meansWhat the visible part is made of. Glass and plastic differ in look, feel and scratch resistance; details (tempered, matte, anti-glare) are in the note. | Plastic (PC/ABS)Housing material per the documents is “PC + CRS”: polycarbonate and the metal frame the key module clips onto. The front material is not named separately [1] |
Wall box type — what it meansWhich wall box the switch is designed for, per its documentation. 86 × 86 mm plates fix with screws 60 mm apart, as on a round European box; check that the housing depth fits your box. | 86 × 86 mm box (86-type), Round EU box (60 mm screw spacing)The maker lists the 86-type box and the round European box (Ø60 and Ø80 mm). Fixing holes 60.3 mm apart; in-wall block 49.1 × 50 mm, overall depth 40.2 mm [4] |
Dimensions (W × H × D) — what it meansThe device’s size in millimetres as the maker states it. Check that it fits the wall box, niche or shelf. | 87 × 87 × 40.2 mmPer the specifications; the mounting drawing shows an 86 mm frame width [1] |
| Upstream circuit breaker | 10 A MCB or RCBO [3] |
Weight — what it meansThe device’s weight without packaging, per the maker. | 157.3 g [1] |
| Housing material | PC + CRS [1] |
Certifications — what it meansStandards and certifications the maker lists for this model (for example CE, RoHS, Zigbee 3.0, Matter). | CE, RoHS; EU declaration: RED 2014/53/EU, RoHS 2011/65/EU and 2015/863/EU, WEEE 2012/19/EU; standard EN IEC 60669-2-1 [7] |
Connectivity — what it meansThe wireless link or network the device uses. Wi-Fi connects straight to the router; Zigbee, Thread and Bluetooth Mesh work through a hub or gateway. | ZigbeeZigbee 3.0 [1] |
|---|---|
Hub required — what it meansWhether the device needs a separate hub, gateway or coordinator to work in a smart home. If so, it is sold separately unless stated otherwise. | Hub (gateway) requiredA Zigbee gateway is needed: the maker recommends SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro or iHost; ZBDongle-P/E also work. Philips and Fritzbox gateways are not supported. The gateway is not included [1] |
Matter support — what it meansWhether the device supports the Matter standard, directly or through a bridge. Matter lets you add it to Apple Home, Google Home, Alexa and Home Assistant. | Via the maker's bridge hubNo built-in Matter. Apple Home via the ZBBridge-U or eWeLink CUBE Matter bridge [2] |
Works without internet — what it meansWhether the device keeps working over the local network or through a hub when the internet is down. Cloud features (remote access, voice assistants) need the internet. | YesThe maker states local low-latency control in Home Assistant via a ZBDongle Zigbee adapter. The eWeLink app, voice assistants and remote access use the cloud [1] |
Home Assistant — what it meansHow the device connects to Home Assistant: a built-in integration, a Zigbee coordinator, Matter or the maker’s cloud integration. | Via a Zigbee coordinator or hubThrough a Zigbee coordinator (e.g. SONOFF ZBDongle-E/P) with ZHA or Zigbee2MQTT. Features differ: ZHA lacks detach relay, timer and indicator control [1] |

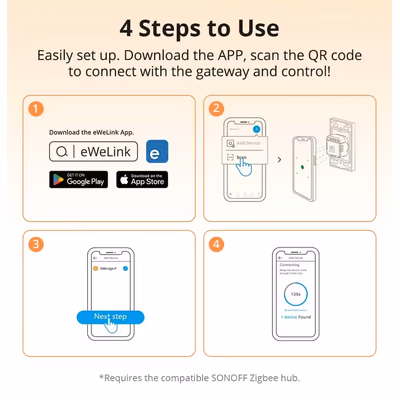

App — what it meansThe maker’s app used to set up and control the device. | eWeLinkThrough a SONOFF gateway. Voice assistants (Alexa, Google Home etc.) after linking the account in eWeLink [3] |
| Zigbee role | With neutral — router (extends the mesh); without neutral — end device [5] |
| Compatible hubs | SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro, iHost, ZBBridge (basic functions), ZBDongle-E/P (ZHA, Zigbee2MQTT)Philips and Fritzbox gateways are not supported [6] |
Processor / radio chip — what it meansThe microcontroller or radio module inside, per the maker (for example ESP32). For firmware such as WLED and ESPHome it determines available features and whether the device can be re-flashed. | Silicon Labs EFR32MG22 [1] |
| Radio frequencies and transmit power | Zigbee 2405–2480 MHz, ≤ 10 dBm [3] |

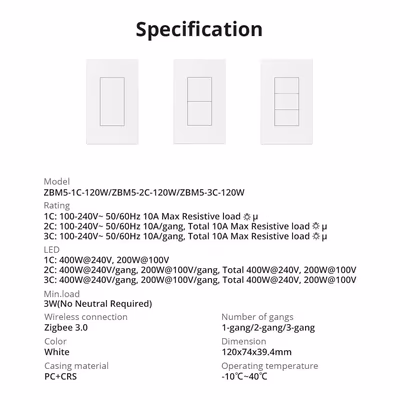

Max current per channel — what it meansThe highest current one key's relay handles with a resistive load. For LED lamps check the separate “LED load” figure, which is usually noticeably lower. | 10 AResistive load [1] |
|---|---|
LED load per channel — what it meansTotal LED lamp wattage per channel that the maker allows. Add up the watts of all lamps on that circuit and compare; for dimmers only dimmable lamps count. If the maker gives the figure in VA or as a total for all channels, the note says so. | 400 WLED, CFL and fluorescent lamps: 400 W at 240 V (200 W at 100 V). For old tubes with starters the maker advises an electronic starter [1] |
Max power per channel (resistive) — what it meansPower of incandescent lamps, heaters and other resistive loads per channel at 220–240 V. For LEDs, motors and power supplies the permitted power is lower. | 2400 WIncandescent lamps: 2400 W at 240 V (1000 W at 100 V) [1] |
Max total current — what it meansCurrent the device handles across all channels at once. On multi-channel models the total is often lower than per-channel current × number of channels. | 10 ASingle channel: 10 A, resistive load [1] |
Minimum load — what it meansThe lowest lamp wattage on the circuit at which the device works reliably. It matters for no-neutral wiring and for dimmers with LED lamps: below it, lights may flicker or glow faintly when off. | 3 WOnly for wiring without neutral. With neutral there is no minimum load. Even 3 W+ bulbs from little-known brands may flicker; the maker advises brand-name bulbs [1] |
Supply voltage — what it meansThe supply voltage (and current, if stated) as the maker gives it. It must match your mains or adapter. | 100–240 V AC, 50/60 Hz [1] |
Power source — what it meansWhere the device gets its power: 230 V mains, an adapter, USB, batteries or a built-in battery. | 230 V mains [1] |
Built-in sensors — what it meansSensors inside the panel. A proximity sensor wakes the screen as you approach; a light sensor adjusts brightness; built-in temperature and humidity sensors can be used in automations. | NoneNo sensors are listed in the specifications [1] |
|---|
Colour — what it meansThe housing colour of this model. Other colours in the same series are separate products. | WhiteOur SKU with W is white. The 86 series also has “Dim gray” (models without W, e.g. ZBM5-1C-86) [3] |
|---|---|
| Barcode (EAN) | 6920075743067Barcode of variant ZBM5-1C-86W in the EU declaration and the official SONOFF store [7] |
Operating temperature — what it meansThe air temperature range the device is rated for. The lower limit matters outdoors, on balconies and in unheated rooms. | −10…40 °C [1] |
|---|---|
Operating humidity — what it meansThe rated relative humidity range, non-condensing. | 5–95%Non-condensing [1] |
| Operating altitude | 2000Up to 2000 m above sea level [3] |
Package contents — what it meansWhat comes in the box, per the maker. | switch × 1, screws × 2, quick guidePer the package photo on the maker’s page; the Zigbee gateway is not included [8] |
|---|
