Sonoff · SNZB-01P

Sonoff SNZB-01P Zigbee wireless switch button, 3 actions

Name: Sonoff SNZB-01P Zigbee wireless switch button, 3 actions
Brand: Sonoff
SKU: SONOFF-SNZB-01P
Price: 279 MDL
Availability: InStock

279 MDLIn stock

Scene buttons & remotes

Zigbee

Manufacturer images

279 MDLIn stock

What it needs to work

A compatible hub is required.

Suitable gateways and hubs

Buy with installation

Check compatibility

Connectivity: Zigbee
Number of keys: 1
Power source: Batteries

No one ever wired a switch by the bed — the SNZB-01P adds one without opening the wall: an adhesive plate holds it magnetically, or it simply lies on the nightstand.

Hubs and systems: compatibility and limitations 12

SONOFF ZBBridgeConditional
Connection: Zigbee / eWeLink
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record
Unsupported functions: Local scene · OTA
SONOFF ZBBridge-PSupported
Connection: Zigbee / eWeLink
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene · OTA
SONOFF ZBBridge-USupported
Connection: Zigbee / eWeLink
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene · OTA
SONOFF NSPanel ProSupported
Connection: Zigbee / eWeLink
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene · OTA
SONOFF iHostSupported
Connection: Zigbee / eWeLink
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene · OTA
Home Assistant (ZHA)Supported
Connection: ZHA
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene · OTA
Home Assistant (Zigbee2MQTT)Supported
Connection: Zigbee2MQTT
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene · OTA
Samsung SmartThings Hub V3Supported
Connection: Zigbee / SmartThings
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene
Aeotec Smart Home Hub V3Supported
Connection: Zigbee / SmartThings
The manufacturer lists this hub / connection method. Features depend on the integration and firmware; see the manufacturer matrix.
Supported functions: Scene trigger · History record · Local scene
Philips HueNot supported
Connection: Zigbee
This manufacturer manual explicitly states no support.
IKEA gatewayNot supported
Connection: Zigbee
This manufacturer manual explicitly states no support.
FRITZ!Box Zigbee gatewayNot supported
Connection: Zigbee
This manufacturer manual explicitly states no support.

20 specifications from manufacturer documents

We deliver across Moldova. Availability, delivery timing and cost are confirmed with a manager before order fulfilment.

The right choice starts with specifications

Device passport

SKU: SONOFF-SNZB-01P · Document model: SNZB-01P

Specifications checked against the linked manufacturer documents.Checked 18 October 2026

Connectivity and compatibility8

Connectivity — what it means The wireless link or network the device uses. Wi-Fi connects straight to the router; Zigbee, Thread and Bluetooth Mesh work through a hub or gateway.	ZigbeeZigbee 3.0 (IEEE 802.15.4) [1]
Hub required — what it means Whether the device needs a separate hub, gateway or coordinator to work in a smart home. If so, it is sold separately unless stated otherwise.	Hub requiredNeeds a Zigbee gateway: SONOFF ZBBridge, ZBBridge-P, ZBBridge-U, NSPanel Pro, iHost, ZBDongle-P/-E adapter (Home Assistant), Samsung SmartThings Hub V3 / Aeotec V3; the maker says any Zigbee 3.0 hub should work in theory. Philips Hue, Amazon Alexa, IKEA and FRITZ!Box gateways are not supported; with the original ZBBridge there are no local scenes or firmware updates [2]
Direct control without a hub — what it means Whether the button can control compatible bulbs, relays or controllers directly, with no gateway or internet — via TouchLink, direct Zigbee binding or radio pairing with a receiver. Which devices this works with is in the note.	NoSONOFF's comparison table marks TouchLink and direct binding as not supported for SNZB-01P: the button works only through a Zigbee gateway [3]
Wireless range — what it means The stated radio range, usually in open space. Walls and floors cut it noticeably.	Not stated by the manufacturer
App — what it means The maker’s app used to set up and control the device.	eWeLinkThrough a SONOFF Zigbee gateway; also works with SmartThings and Home Assistant, and in Apple Home via a software Matter bridge [1]
Home Assistant — what it means How the device connects to Home Assistant: a built-in integration, a Zigbee coordinator, Matter or the maker’s cloud integration.	Via a Zigbee coordinator or hubVia a Zigbee adapter (e.g. ZBDongle-P/-E) in ZHA or Zigbee2MQTT [1]
Processor / radio chip — what it means The microcontroller or radio module inside, per the maker (for example ESP32). For firmware such as WLED and ESPHome it determines available features and whether the device can be re-flashed.	EFR32MG22 [1]
Apple Home	Via a software Matter bridge (eWeLink CUBE) or ZBBridge-U [2]

Control and features6

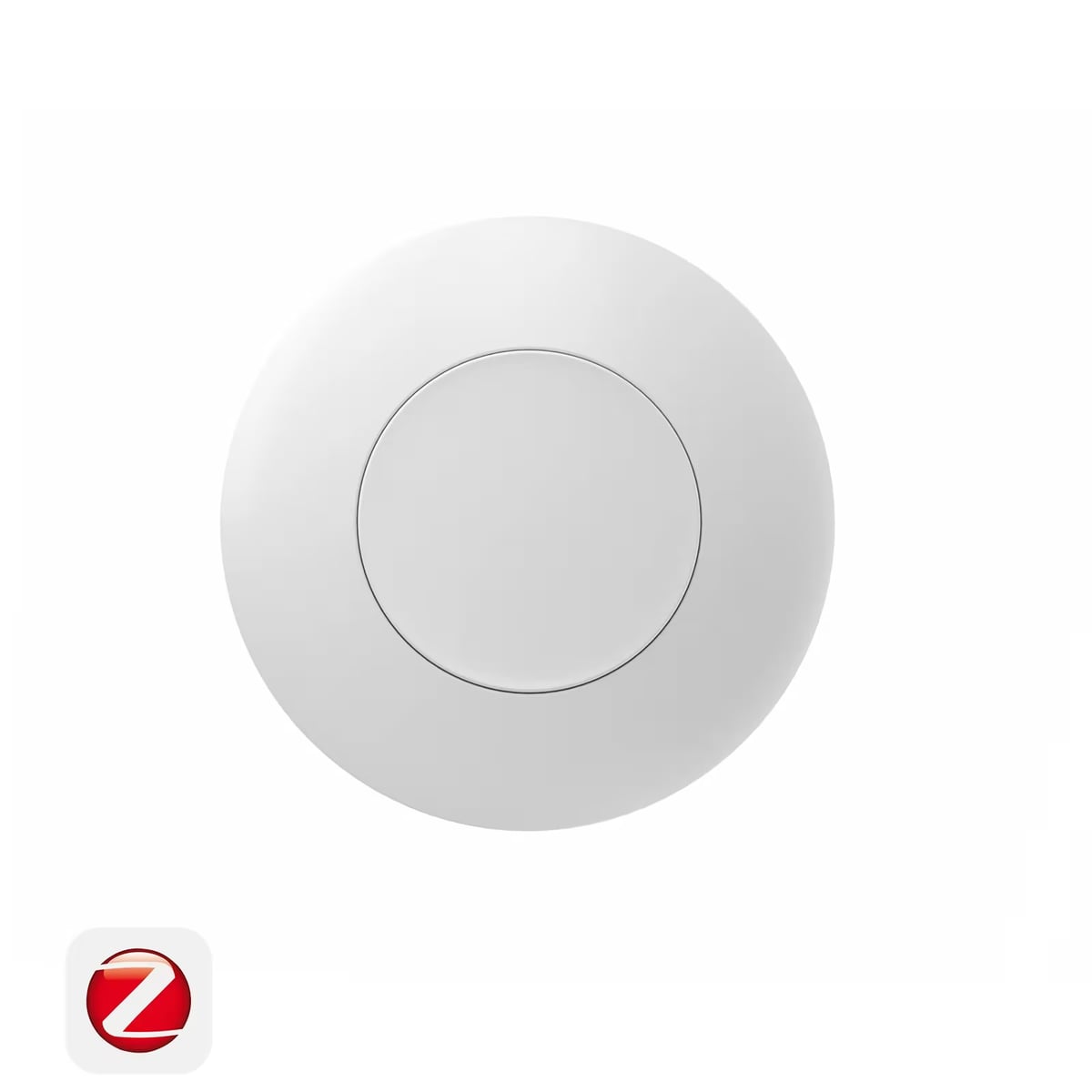

Device form — what it means What the device looks like and where it is used: a wall panel in place of a regular switch, a compact button you can stick anywhere or carry around, a handheld remote, or a desktop rotary knob.	Compact buttonA small round 45 × 45 mm button that fits in a pocket [1]
Number of keys — what it means How many separate buttons or touch keys can each be given their own commands. For lighting remotes with zone keys, the number of zones is given separately.	1Plus a separate pairing button on the side [3]
Press types — what it means Which actions the button tells apart: single, double or triple press, long press, turning. Each can trigger its own scene, so one button does the job of several. If the set depends on the gateway or mode, this is stated in the note.	Single press, double press, long pressWhen added to other platforms via a Matter bridge, all three actions work only in Apple Home; other platforms get single press only [1]
Number of commands (scenes) — what it means How many different commands the device can be given in total — keys × press types — according to the manufacturer. The actual number may depend on the gateway or app; this is stated in the note.	31 key × 3 press types [2]
Control type — what it means How you operate the device by hand: a mechanical button with travel and a click, touching glass with no travel, a rotary knob, or a touch ring for picking colour and brightness.	Mechanical keysA mechanical spring-return button rated for about 100,000 presses [2]
Button endurance	100 000About 100,000 presses [2]

Power3

Power source — what it means Where the device gets its power: 230 V mains, an adapter, USB, batteries or a built-in battery.	Batteries [1]
Batteries or battery — what it means Which cells it takes and how many. A built-in rechargeable battery is stated in the value.	1 × CR2477 [1]
Battery life — what it means Typical life on one set of batteries or one charge, per the maker. Frequent triggers, cold and a weak signal shorten it.	60 months'Up to 5 years' — a theoretical SONOFF lab figure at 10 presses an hour and one pairing a month [2]

Housing and installation2

Mounting — what it means How and where it is installed: in a wall box, on a wall or ceiling, on a DIN rail, on a table or in a socket.	Magnetic, adhesive tape, screw-fixed (surface), on a table or shelfStick the button on with 3M tape, or put it on a metal plate (stuck with 3M tape or screwed on) where it holds magnetically; it can also simply lie on a table. Mounting height up to 2 m [4]
Dimensions — what it means The device’s size in millimetres as the maker states it. Check that it fits the wall box, niche or shelf.	45 × 45 × 17.7 mm [1]

Model and version1

Colour — what it means The housing colour of this model. Other colours in the same series are separate products.	White [1]

Operating conditions1

Operating temperature — what it means The air temperature range the device is rated for. The lower limit matters outdoors, on balconies and in unheated rooms.	−10…60 °C [1]
