Sonoff · S60TPF

Sonoff iPlug S60TPF Wi-Fi smart plug 16A with energy monitoring

Name: Sonoff iPlug S60TPF Wi-Fi smart plug 16A with energy monitoring
Brand: Sonoff
SKU: SONOFF-S60TPF
Price: 279 MDL
Availability: InStock

279 MDLIn stock

Smart plug adapters

Wi-Fi

Manufacturer images

279 MDLIn stock

Buy with installation

Check compatibility

Connectivity: Wi-Fi
Max load power: 4000 W
Where to use: Indoor

Five minutes after unboxing, this 16 A plug sits between the wall socket and your heater, runs schedules and counts watts over the router you already own.

No separate hub required

Connects to the router over Wi-Fi and is controlled in eWeLink.

Source ↗

29 specifications from manufacturer documents

We deliver across Moldova. Availability, delivery timing and cost are confirmed with a manager before order fulfilment.

The right choice starts with specifications

Device passport

SKU: SONOFF-S60TPF · Document model: S60TPF

Specifications checked against the linked manufacturer documents. Load limits, package details and measurement conditions are retained.Checked 18 October 2026

Connectivity and compatibility8

Connectivity — what it means The wireless link or network the device uses. Wi-Fi connects straight to the router; Zigbee, Thread and Bluetooth Mesh work through a hub or gateway.	Wi-FiWi-Fi IEEE 802.11 b/g/n, 2.4 GHz only [1]
Hub required — what it means Whether the device needs a separate hub, gateway or coordinator to work in a smart home. If so, it is sold separately unless stated otherwise.	No hub neededConnects to the router over Wi-Fi and is controlled in eWeLink [2]
Matter support — what it means Whether the device supports the Matter standard, directly or through a bridge. Matter lets you add it to Apple Home, Google Home, Alexa and Home Assistant.	Via the maker's bridge hubNo built-in Matter; it is added to Apple Home, Google Home, Alexa, SmartThings and Home Assistant through the eWeLink CUBE Matter bridge (iHost, NSPanel Pro) [2]
Works without internet — what it means Whether the device keeps working over the local network or through a hub when the internet is down. Cloud features (remote access, voice assistants) need the internet.	YeseWeLink LAN mode: on/off over the home network without the server (phone and plug on the same network) [2]
Home Assistant — what it means How the device connects to Home Assistant: a built-in integration, a Zigbee coordinator, Matter or the maker’s cloud integration.	Via a Zigbee coordinator or hubVia a hub: the eWeLink CUBE Matter bridge passes the plug to Home Assistant; it can also be added to iHost through the eWeLink Smart Home Add-on [2]
App — what it means The maker’s app used to set up and control the device.	eWeLink [1]

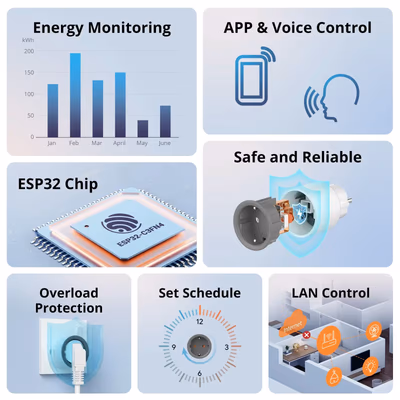

Processor / radio chip — what it means The microcontroller or radio module inside, per the maker (for example ESP32). For firmware such as WLED and ESPHome it determines available features and whether the device can be re-flashed.	ESP32-C3 [1]
Wi-Fi	IEEE 802.11 b/g/n, 2.4 GHz (Wi-Fi 4) [1]

Power and load6

Max load power — what it means The highest appliance power you can run through the plug, per the documentation. A heater or kettle typically draws 2,000–2,500 W; the exact rating is on the appliance label.	4000 WResistive load, 250 V [1]
Max current — what it means The highest current through the plug. 16 A at 230 V is about 3.7 kW; 10 A is about 2.3 kW.	16 A [1]
Plug and socket type — what it means Plug and socket standard. Schuko (type F) sockets are common in Moldova; a hybrid E/F plug fits both F and E sockets.	Hybrid E/FType E/F version (S60…TPF): Schuko socket with side earth contacts and an earth pin; a separate Type G version (S60…TPG, UK standard) exists [2]
Standby power — what it means How much power the device draws on its own while idle. It matters for devices that run around the clock.	1 WLess than 1 W [2]
Supply voltage — what it means The supply voltage (and current, if stated) as the maker gives it. It must match your mains or adapter.	250 V AC, 50/60 Hz, 16 A [1]
Relay lifetime	40,000 switching cycles [2]

Operating conditions3

Where to use — what it means Indoors or outdoors. Outdoor models are protected against splashes and dust — the IP rating and temperature range are listed below.	Indoor [1]
Operating temperature — what it means The air temperature range the device is rated for. The lower limit matters outdoors, on balconies and in unheated rooms.	−10…40 °C [1]
Operating humidity — what it means The rated relative humidity range, non-condensing.	5–95%Non-condensing [1]

Measurement and detection2

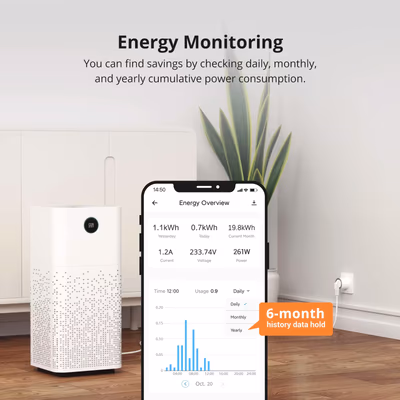

Measured values — what it means Which values the device reports in the app. Energy in kWh lets you work out costs; voltage helps spot sags and surges on the line.	Voltage (V), current (A), power (W), energy (kWh)In eWeLink: real-time current, voltage and power; usage for yesterday, today and the current month; up to 6 months of history with export [1]
Measurement accuracy — what it means Measurement error per the documentation, e.g. ±2 % for power. Unless meter certification (such as MID) is stated, readings are for tracking use, not for billing with the supplier.	Not stated by the manufacturer

Control and features5

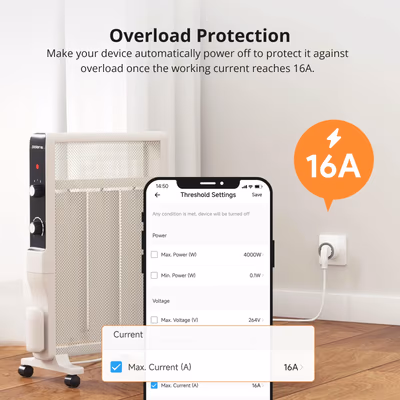

Cut-off on set limits — what it means The device switches the load off by itself if current, power or voltage limits set in the app are exceeded. It does not replace the circuit breaker in the panel.	YesCuts the load automatically at 16 A; in eWeLink you can set power, voltage and current limits that cut the power when exceeded [1]
Button lock (child lock) — what it means The button on the housing can be locked in the app so a child or an accidental press can't switch the appliance off.	Not stated by the manufacturer
Channels — what it means How many separate loads (light circuits, appliances, motors) the device controls independently.	1 [1]
Socket safety shutters	YesThe shutters stop children pushing fingers or objects into the socket holes. This is not a button lock [2]

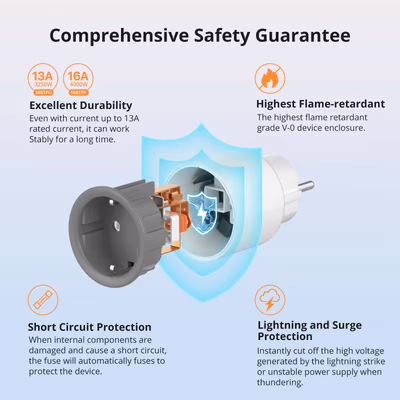

Surge protection	YesLightning and surge protection; also short-circuit protection (built-in fuse) [1]

Package contents2

Units per pack — what it means How many plugs come in one pack. To compare the price per unit, divide the cost by this number.	1The official store sells this model in 1-, 2- and 4-packs; our SKU is the single plug (per photos and title, no pack mentioned) [2]
Manufacturer warranty — what it means The warranty period the maker states. Confirm warranty terms in Moldova with the seller.	24 months [2]

Housing and installation5

Ingress protection (IP) — what it means Protection against dust (first digit) and water (second). IP20 is for dry rooms only, IP44 resists splashes, IP65 and up handle water jets and outdoor use.	Not stated by the manufacturer
Dimensions (W × H × D) — what it means The device’s size in millimetres as the maker states it. Check that it fits the wall box, niche or shelf.	50 × 50 × 61.5 mm [1]
Weight — what it means The device’s weight without packaging, per the maker.	79 g [1]
Housing material	Polycarbonate (PC), flame-retardant grade V0 [1]
Certifications — what it means Standards and certifications the maker lists for this model (for example CE, RoHS, Zigbee 3.0, Matter).	CE, RoHS [1]

Model and version1

Colour — what it means The housing colour of this model. Other colours in the same series are separate products.	White [1]

Manufacturer documents

Clear purchase details

Delivery and stock

We deliver across Moldova. Availability, delivery timing and cost are confirmed with a manager before order fulfilment.

How is payment handled?

A website order is submitted for confirmation without charging your card. The payment method and final amount are agreed with a manager before payment.

Warranty and documents

The warranty is at least 12 months. The exact period and conditions for equipment and installation work are stated in the sales documents and the accepted proposal. Further support is agreed for each project.

Can I return the product?

Current conditions are published on the Return policy page. Email office@casasmart.md with your order number for the steps relevant to your situation. Statutory consumer rights continue to apply.

Delivery, payment and returns

In your home

See consumption. Control what stays on.

A whole-home meter does not show which appliances consume more. Separate monitoring helps reveal habits and useful changes.

See the complete solution

An electrical panel, a washing machine and an electric car charging in the garage — An example routineSee which circuit uses electricity.

What to check before buying

Breakers, RCDs and voltage protection relays are selected separately. Smart relays do not replace electrical protection. Refrigerators, servers and critical loads are excluded from general shutoff.
Check Wi-Fi band, app, region and internet requirements.
