In a Chișinău flat the Zigbee ZBMINIR2 module sits in the back box, and the E1GS paddle lets the family switch the light by hand like an ordinary switch.
What it is, who it's for, what it does
About this product

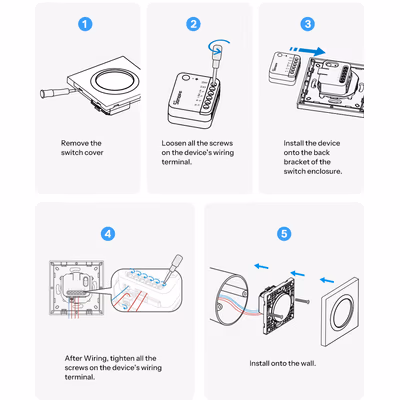

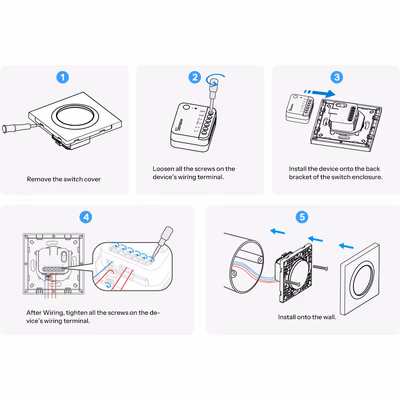

The Sonoff E1GS is the physical enclosure that turns a hidden retrofit module (ZBMINIR2, MINIR4M or MINIR4) into an ordinary wall switch. The Sonoff module wires in behind it, and the E1GS paddle controls it by hand, so switching the light stays familiar for everyone in the household even when no phone is around.<br><br>The shell is white fire-retardant, scratch-resistant PC, measuring 86 × 86 × 34 mm with a maximum thickness under 23 mm. The clip-on mount fits standard 86-type back boxes and Ø60 mm European round boxes, including shallow ones. The Sonoff module itself is not included — the E1GS is the enclosure and paddle only.
- DeliveryDelivery 50 MDL
- Returns14 days to return
- Warranty24 months
15+projects delivered300+devices installed3 yearslocal-first experienceChișinăushowroom Columna 153Book a showroom visit →
Where it works
Use cases
When only the wiring accessory is replaced, the white 86 mm E1GS enclosure drops into the existing back box and keeps a neat look on the wall.
Guests and children turn off the light by pressing the E1GS paddle, with no app, while the Sonoff module keeps the automations running.
For the installerTechnical specificationsfull spec · wiring · datasheet
For the installer
Technical specifications
full spec · wiring · datasheet
Physical
- Dimensions
- 86×86×34 mm
- Maximum thickness
- <23 mm
- Weight
- 56.5 g
- Enclosure material
- PC (polycarbonate), flame-retardant, scratch-resistant
- Color
- white
- Back box
- 86-Type and round EU Ø60 mm
- Mounting type
- clip-on
Other
- Compatible modules
- Sonoff ZBMINIR2, MINIR4M, MINIR4 (with neutral)
Support
Frequently asked questions
Which Sonoff modules fit the E1GS?
The E1GS is the neutral version, for the ZBMINIR2, MINIR4M and MINIR4. For the no-neutral ZBMINIL2 use the E1GSL variant instead.Is the Sonoff module included in the box?
No, the E1GS is the enclosure and paddle only; the Sonoff module (e.g. ZBMINIR2) is bought separately.Which back boxes does it fit?
Standard 86-type boxes and Ø60 mm European round boxes, including some shallow ones, thanks to its under-23 mm thickness.What is the enclosure made of?
Fire-retardant, scratch-resistant white PC (polycarbonate) that does not deform over time.How deep does the back box need to be?
With the Sonoff module behind it, the box needs to exceed 30 mm; check this in older walls with small metal boxes.Does the E1GS have any electronics or protocol?
No, it is a passive mounting part — no circuitry, power or protocol; it only houses the module and provides the paddle.
